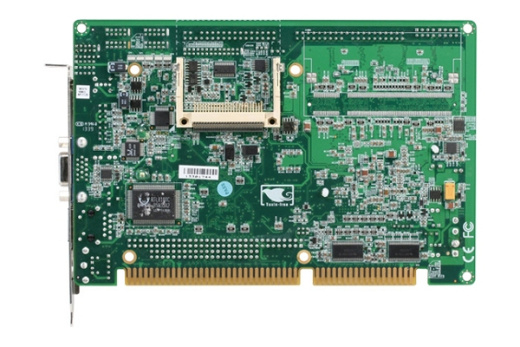

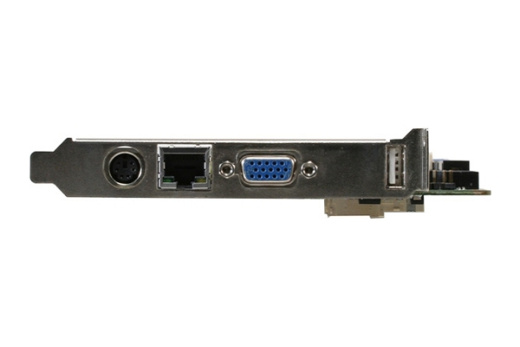

Одноплатный компьютер HSB-800I
Цена по запросу
Арт. HSB-800I
HSB-800I,ISA Half-Size SBC with AMD Geode™ LX800 Processor.
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
Одноплатный компьютер HSB-800I
Цена по запросу
Арт. HSB-800I
#PROP_TITLE#
—
#PROP_VALUE#
- AMD Geode™ LX800 Processor
- AMD Geode™ LX800 + CS5536
- Onboard DDR 400 MHz, Up to 128 MB
- 10/100Base-TX Ethernet x 1 or Gigabit Ethernet x 1 (Optional)
- Integrated 2D Graphics Accelerator, VGA Support, CRT, TFT/ LVDS Support
- AC97 Codec Audio
- Ultra ATA33 x 1, CompactFlash™ Type 2 x 1
- USB2.0 x 4, COM x 4, Parallel x 1, IrDA x 1, Digital I/O
- PC/104 Expansion
- +5V, +12V Operation, AT Power
| SYSTEM | |
| FORM FACTOR | Half-size CPU Card |
| BUS INTERFACE | ISA |
| CPU | Onboard AMD Geode™ LX800 |
| MEMORY TYPE | Onboard 128 MB (DDR 400) |
| CHIPSET | AMD Geode™ LX800 + CS 5536 |
| BIOS | Award |
| WAKE ON LAN | No |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | ATX 2.1 |
| POWER CONSUMPTION (TYPICAL) | AMD LX800, DDR400 128MB 0.19A@+12V, 1.51A@+5V, 9.83W |
| POWER SUPPLY TYPE | +5V, +12V operation |
| DIMENSION (L X W) | 7.3" x 4.8" (185mm x 122mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 85000 |
| CERTIFICATION | CE/FCC, Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | AMD Geode™ LX800 |
| VIDEO OUTPUT | 1600 x 1200@32bpp at 100 MHz for CRT 1600 x 1200@24bpp for LCD |
| BACKLIGHT INVERTER SUPPLY | 5V/12V |
| I/O | |
| ETHERNET | 10/100 or 10/100/1000Base-TX (optional) |
| AUDIO | Yes |
| USB PORT | USB2.0 x 4 |
| SERIAL PORT | RS-232 x 3 RS-232/422/485 x 1 |
| PARALLEL PORT | 1 |
| HDD INTERFACE | IDE x 1 |
| FDD INTERFACE | 1 |
| SSD | CompactFlash™ |
| EXPANSION SLOT | ISA, PC/104 |
| DIO | 8-bit Programmable (4-in/4-out) |
| TPM | — |
