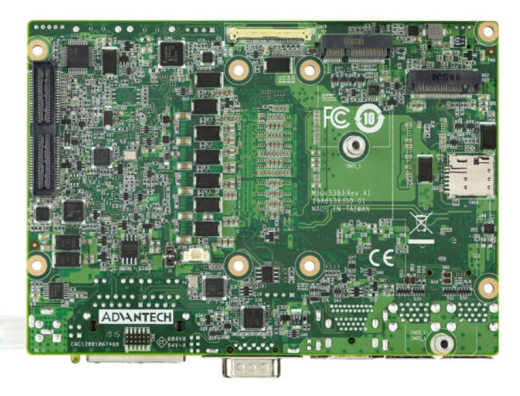

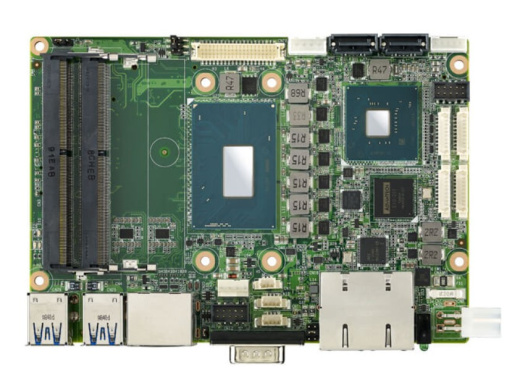

Материнская плата MIO-5393
Цена по запросу
Арт. MIO-5393
Процессор Intel® Xeon®/Core ™ 9-го/8-го поколения с TDP 45 Вт/25 Вт. Двухканальный DDR4-2400, до 64 ГБ*, ECC для Xeon SKU.
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
Материнская плата MIO-5393
Цена по запросу
Арт. MIO-5393
#PROP_TITLE#
—
#PROP_VALUE#
- Процессор Intel® Xeon®/Core ™ 9-го/8-го поколения с TDP 45 Вт/25 Вт
- Двухканальный DDR4-2400, до 64 ГБ*, ECC для Xeon SKU
- Одновременное подключение 3 дисплеев: 48-битный LVDS + HDMI + DP
- USB 3.2 Gen2 (10 Гбит/с), TPM 2.0 и SSD NVMe / PCIe Gen3x4
- Двойной порт GbE, SATA III, RS-232/422/485, CANBus, SMBus, I2C
- M.2 B-key 2280/3042, (дополнительно M-Key 2280) и M.2 E-Key 2230
- Поддержка iManager 3.0, программных интерфейсов API и WISE-DeviceOn.
| Part Number | MIO-5393RE6C-U8A1 | MIO-5393RC7Q-U7A1 | MIO-5393RC7Q-S9A1 | MIO-5393C5Q-U5A1 |
| Processor | ||||
| CPU | Intel Xeon E-2276ME | Intel Core i7-9850HE | Intel Core i7-9850HL | Intel Core i5-8400H |
| Max Turbo Frequency | 4.5 GHz | 4.4 GHz | 4.1 GHz | 4.2 GHz |
| Base Frequency | 2.8 GHz | 2.7 GHz | 1.9 GHz | 2.5 GHz |
| Core Number | 6 | 6 | 6 | 4 |
| Thread | 12 | 12 | 12 | 8 |
| LLC | 12MB | 9MB | 9MB | 8MB |
| Chipset | Intel CM246 | Intel QM370 | Intel QM370 | Intel QM370 |
| CPU TDP | 45W | 45W | 25W | 45W |
| BIOS | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit |
| Memory | ||||
| Technology | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM |
| Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) |
| Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| ECC Support | Yes | No | No | Yes |
| Graphics | ||||
| Controller | Intel Gen 9 LP | Intel Gen 9 LP | Intel Gen 9 LP | Intel Gen 9 LP |
| Chipset | Intel UHD Graphics P630 | Intel UHD Graphics 630 | Intel UHD Graphics 630 | Intel UHD Graphics 630 |
| Max. Frequency | 1150 MHz | 1100 MHz | 1100 MHz | 1100 MHz |
| Base Frequency | 350 MHz | 350 MHz | 350 MHz | 350 MHz |
| 3D/HW Acceleration | 3D: DX 2015/11.2/11.1/10/9 ; OpenGL4.5; OpenCL 2.0/1.2/1.0 HW Decode: AVC/H264, VC1/WMV9, MPEG2, HEVC/H265 (8/10 bits), VP8, JPEG/MJPEG, VP9 HW Encode: AVC/H264, MPEG2, HEVC/H265, VP8, JPEG, VP9 | 3D: DX 2015/11.2/11.1/10/9 ; OpenGL4.5; OpenCL 2.0/1.2/1.0 HW Decode: AVC/H264, VC1/WMV9, MPEG2, HEVC/H265 (8/10 bits), VP8, JPEG/MJPEG, VP9 HW Encode: AVC/H264, MPEG2, HEVC/H265, VP8, JPEG, VP9 | 3D: DX 2015/11.2/11.1/10/9 ; OpenGL4.5; OpenCL 2.0/1.2/1.0 HW Decode: AVC/H264, VC1/WMV9, MPEG2, HEVC/H265 (8/10 bits), VP8, JPEG/MJPEG, VP9 HW Encode: AVC/H264, MPEG2, HEVC/H265, VP8, JPEG, VP9 | 3D: DX 2015/11.2/11.1/10/9 ; OpenGL4.5; OpenCL 2.0/1.2/1.0 HW Decode: AVC/H264, VC1/WMV9, MPEG2, HEVC/H265 (8/10 bits), VP8, JPEG/MJPEG, VP9 HW Encode: AVC/H264, MPEG2, HEVC/H265, VP8, JPEG, VP9 |
| Display | ||||
| LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz |
| DP/HDMI | DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) | DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) | DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) | DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) |
| eDP* | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz |
| Multi-Display | Triple simultaneous displays with 48-bit LVDS/eDP + HDMI + DP | Triple simultaneous displays with 48-bit LVDS/eDP + HDMI + DP | Triple simultaneous displays with 48-bit LVDS/eDP + HDMI + DP | Triple simultaneous displays with 48-bit LVDS/eDP + HDMI + DP |
| Ethernet | ||||
| Speed | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Controller | GbE1: Intel i219, GbE2: Intel i210 | GbE1: Intel i219, GbE2: Intel i210 | GbE1: Intel i219, GbE2: Intel i210 | GbE1: Intel i219, GbE2: Intel i210 |
| Connector | 2 RJ45 on Rear I/O | 2 RJ45 on Rear I/O | 2 RJ45 on Rear I/O | 2 RJ45 on Rear I/O |
| Watchdog Timer | ||||
| 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer | 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer | 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer | 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer | |
| Storage | ||||
| M.2 | M.2 B key (type 2242 & 2280) | M.2 B key (type 2242 & 2280) | M.2 B key (type 2242 & 2280) | M.2 B key (type 2242 & 2280) |
| SATA | 2, up to 6.0 Gb/s (600 MB/s) | 2, up to 6.0 Gb/s (600 MB/s) | 2, up to 6.0 Gb/s (600 MB/s) | 2, up to 6.0 Gb/s (600 MB/s) |
| Audio | ||||
| CODEC | High Definition Audio (HD), Line-in, Line out, Mic-in | High Definition Audio (HD), Line-in, Line out, Mic-in | High Definition Audio (HD), Line-in, Line out, Mic-in | High Definition Audio (HD), Line-in, Line out, Mic-in |
| Amplifier | Optional via MIOe | Optional via MIOe | Optional via MIOe | Optional via MIOe |

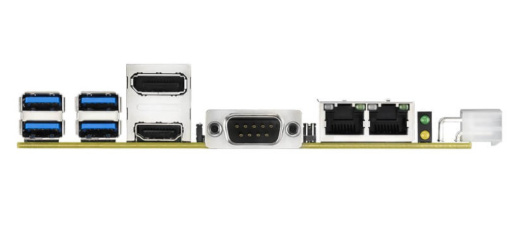

| Rear I/O | ||||
| DP/HDMI | 1/1 | 1/1 | 1/1 | 1/1 |
| USB | 4 x USB 3.1 (Gen.2, 10Gbps) | 4 x USB 3.1 (Gen.2, 10Gbps) | 4 x USB 3.1 (Gen.2, 10Gbps) | 4 x USB 3.1 (Gen.2, 10Gbps) |
| DC Jack* | 1 (Optional) | 1 (Optional) | 1 (Optional) | 1 (Optional) |
| Serial | 1 RS232/422/485 support auto flow control | 1 RS232/422/485 support auto flow control | 1 RS232/422/485 support auto flow control | 1 RS232/422/485 support auto flow control |
| Ethernet | 2 | 2 | 2 | 2 |
| LED | Power, HDD | Power, HDD | Power, HDD | Power, HDD |
| Security | ||||
| TPM | TPM2.0 (Infineon SLB9665) | TPM2.0 (Infineon SLB9665) | TPM2.0 (Infineon SLB9665) | TPM2.0 (Infineon SLB9665) |
| Internal I/O | ||||
| USB2.0 | 2 | 2 | 2 | 2 |
