- Процессор Intel Core 8-го/9-го поколения, Intel Q370/H310/C246
- Поддерживает DDR4 SODIMM объемом до 64 ГБ
- 3 независимых дисплея: 1 VGA + 2 HDMI/DP++ (авт. определение)
- Расширенные возможности ввода-вывода: 2 GbE, 6 COM, 4 USB 3.1, 2 USB 2.0
- 3 слота M.2 поддерживают NVMe
- Поддержка связи 5G
- Рабочая температура: от -20 до +70 °C
- 15 лет поддержка жизненного цикла процессора на основе Дорожной карты Intel IOTG
| CPU | Intel® Elkhart lake SoC CPU：Celeron J6412 2.0-2.6GHz 4 cores 4 threads；Celeron N6210 1.2-2.6GHz 2 cores 2 threads |
| System memory | 1*DDR4 SO-DIMM , 3200MHz, up to 16GB |
| Expansion | 1*M.2 B-key 3052, wih PCIe X1+USB2.0+SIM slot，support 5G RN or 4G LTE module； |
| 1*JHCTECH Express-01 80pin composite signal high speed interface：2*PCIeX1, 4*USB2.0, Front-Audio; 1*PS/2, Front-Panel, 1*Sm bus & 1*eSPI | |
| Graphics | Intel Gen11 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8；HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9 |
| HDMI2.0 max res. 4096*2304@60Hz | |
| VGA max res. 1920*1200@60Hz | |
| Audio | Realtek ALC662 controller (Opt.), Supports 5.1 channel |
| LAN | 2*Intel I225V PCIe Gig. Ethernet, 10/100/1000/2500Mbps, support WOL |
| Storage | 1*2.5”SATA3.0(6.0Gbps) bay，1*1*full size mSATA，support AHCI |

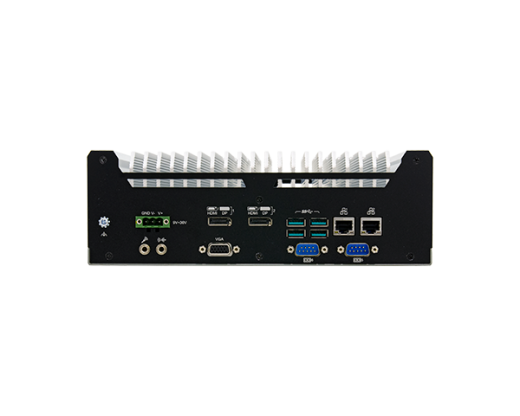

| I/O Interface | Front I/O：1*HDMI+1*VGA; 2*2.5G-LAN(RJ45)；2*USB3.1(Type A), 2*USB2.0(Type A) |

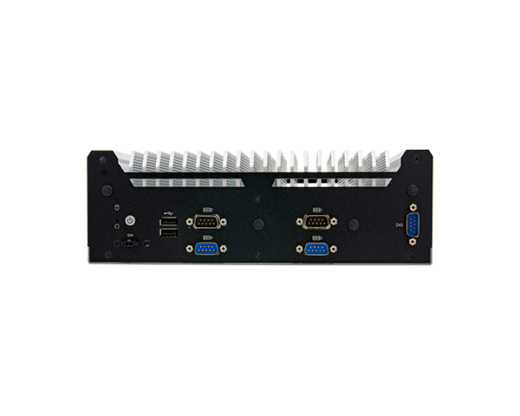

| Back I/O：2*RS232/422/485 (DB9 male), 2*RS232(DB9 male)；1*8-bit DIO (DB9 male )； | |
| 1*Audio line out (3.5mm phone jack) | |
| Side & internal：1*SIM（side）; 1*USB2.0(Type A internal） | |
| I-port | Support internal 1*USB2.0 or M.2 3052 and ect expansion module |
| LED | 1*Power LED, 1*HDD LED, 3*CPU temp LED（Red is warning , Yellow is high, Green is normal） |
| Control SW | 1*Power button w/LED，1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW |
| Power supply | DC 12V , 1*3-pin phoenix term, TDP: TBD； |
| Optional OFX-075 power board，DC 9-36V wide power input ，with short circuit, over voltage and over current protection | |
| Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
| OS | Windows 10 64 bit, SUSE, Ubuntu, Wind River, Linux |
| Mechanical | SGCC chassis, Aluminum frame |
| Color | Blue+white |
| Mounting | Desk mounting |
| Dimension | (W*H*D)：155*111.8*65 mm |
| Net weight | 1.30KG |
| Operating temperature | -20～60℃, wide temp SSD, airflow |
| Storage temperature | -40°C~85°C |
| Storage humidity | 10~90%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration (11ms duration)(SSD); 20g peak acceleration (11ms duration)(HDD） |
| EMC and Certification | CE/FCC Class B |
