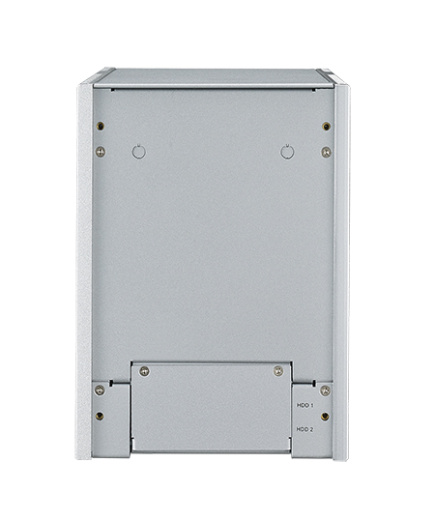

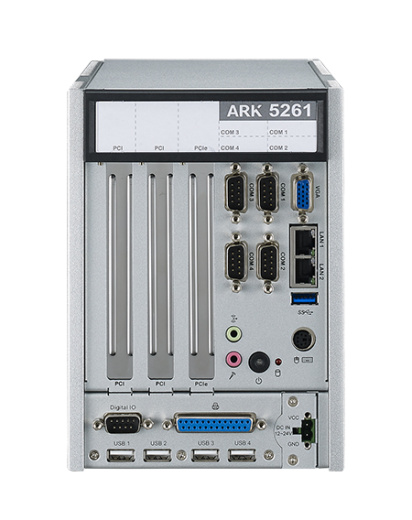

Встраиваемый компьютер ARK-5261
Цена по запросу
Арт. ARK-5261
ARK-5261: Intel® Celeron® Processor J1900 Fanless, Embedded with 2xPCI,1xPCIex1,4xCOM, DC 9~30V, ARK-5261i: Intel® Celeron® Processor J1900 Fanless
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
Встраиваемый компьютер ARK-5261
Цена по запросу
Арт. ARK-5261
#PROP_TITLE#
—
#PROP_VALUE#
- Sealed construction with fanless operation, supports Intel® Celeron® Processor J1900 up to 2.41 GHz
- Supports 2 Giga LAN and 1 USB 3.0 + 5 USB 2.0
- Support 4 RS-232/422/485 with Auto-flow control and COM 1 & 2 port with 5V/12V power
- Support 4 RS-422/485 Isolation module type
- Built-in 1 x PCIe, and 2 x PCI expansion slots or 3 x PCI expansion slots
- Rubber anti-vibration card-holder for PC expansion boards
- Support wide range operating Temperature of -20~60C
- Supports wide power range of 9 ~ 30V DC input
- Supports SUSIAccess and Embedded Software APIs
| AIIS-1240-00A1E | ||
|---|---|---|
| Processor System | CPU | Intel Core i3/i5/i7 (LGA1155) |
| Frequency | Up to 3.4 GHz | |
| Core Number | 2/4/4 | |
| L3 Cache | 3 / 6 / 8 MB | |
| BIOS | AMI 64 Mb SPI Flash | |
| Chipset | Intel H61 | |
| Memory | Technology | Dual Channel DDR3 1066/1333 MHz (Non ECC) |
| Socket | 2 x 204-pin SODIMM | |
| Max. Capacity | 16 GB (8 GB per DIMM) | |
| Ethernet | Controller | LAN1: Intel 82579VLAN2: Intel 82583V |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec/min | |
| Storage | CFast | 1 |
| HDD | 1 x internal 2.5" HDD Bay | |
| Front I/O Interface | USB3.0 | 4 |
| Rear I/O Interface | USB2.0 | 4 |
| Cooling | System Fan | 1 (6cm / 27.7 CFM) |
| Environment | Operational Temperature | 0 ~ 45° C |
| Operating Vibration | 1Grms, random, 5~500Hz, 3 axes, 1 hr/axis | |
| Operating Shock | 10G, half sine wave, 11 ms duration | |
| Physical Characteristics | Weight | 2.5 kg |
| Dimensions (W x H x D) | 232 x 70 x 175 mm (9.06" x 2.76" x 6.89") | |
| Miscellaneous | LED Indicators | Power, HDD, temperature |
| Control | Power on/off switch | |
| Graphics | Chipset Integrated | Integrated Intel HD Graphics |
