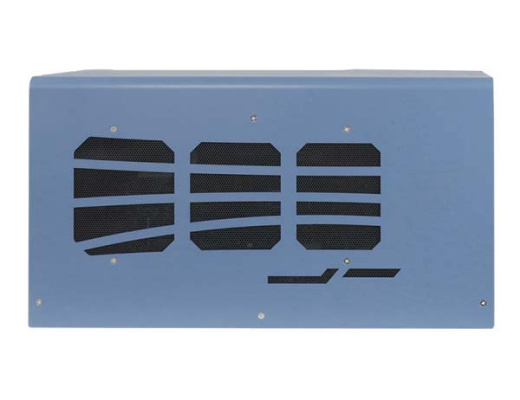

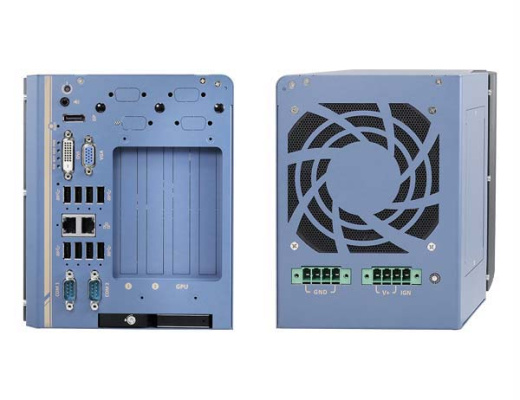

Встраиваемый компьютер Nuvo-8108GC
Цена по запросу
Арт. Nuvo-8108GC
Industrial-grade edge AI platform supporting 250W NVIDIA® GPU Card, Intel® Xeon® E and 8th/ 9th-Gen Core™ processor with 8~48V wide-range DC input and built-in ignition control
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
Встраиваемый компьютер Nuvo-8108GC
Цена по запросу
Арт. Nuvo-8108GC
#PROP_TITLE#
—
#PROP_VALUE#
- Supports 250W NVIDIA® graphics card up to 14 TFLOPS in FP32
- Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
- Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
- One x16 (8-lanes), two x8 (4-lanes), Gen3 PCIe slots for add-on cards
- 1x M.2 M key, 1x M.2 B key and 2x full-size mini-PCIe sockets.
- 8~48V wide-range DC input with built-in ignition power control
- Patented thermal design for -25°C to 60°C rugged operation*
- Patented damping brackets* to withstand 1 Grms vibration
| Model Name | TANK AIoT Dev. Kit |
|---|---|
| Chassis | |
| Color | Black C + Silver |
| Dimensions (WxDxH) | 121.5 x 255.2 x 205 mm (4.7" x 10" x 8") |
| System Fan | Fan |
| Chassis Construction | Extruded aluminum alloys |
| Weight (Net/Gross) | 4.2 kg (9.26 lbs)/ 6.3 kg (13.89 lbs) |
| Motherboard | |
| CPU | Intel® Xeon® E3-1268LV5 2.4GHz (up to 3.4 GHz, Quad Core, TDP 35W) Intel® Core™ i7-7700T 2.9GHz (up to 3.8 GHz, Quad Core, TDP 35W) Intel® Core™ i5-7500T 2.7GHz (up to 3.3 GHz, Quad Core, TDP 35W) Intel® Core™ i7-6700TE 2.4 GHz (up to 3.4GHz, quad-core, TDP 35W) Intel® Core™ i5-6500TE 2.3 GHz (up to 3.3GHz, quad-core, TDP 35W) |
| Chipset | Intel® Q170/C236 with Xeon® E3 only |
| System Memory | 2 x 260-pin DDR4 SO-DIMM, 8 GB pre-installed (for i5/i5KBL/i7 sku) 16 GB pre-installed (for i7KBL sku) 32 GB pre-installed (for E3 sku) |
| Storage | |
| Hard Drive | 2 x 2.5’’ SATA 6Gb/s HDD/SSD bay, RAID 0/1 support (1x 2.5” 1TB HDD pre-installed) |
| I/O Interfaces | |
| USB 3.0 | 4 |
| USB 2.0 | 4 |
| Ethernet | 2 x RJ-45 LAN1: Intel® I219LM PCIe controller with Intel® vPro™ support LAN2 (iRIS): Intel® I210 PCIe controller |
| COM Port | 4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection) 2 x RS-232/422/485 (DB-9) |
| Digital I/O | 8-bit digital I/O, 4-bit input / 4-bit output |
| Display | 1 x VGA 1 x HDMI/DP 1 x iDP (optional) |
| Resolution | VGA: Up to 1920 x 1200@60Hz HDMI/DP: Up to 3840x2160@30Hz / 4096×2304@60Hz |
| Audio | 1 x Line-out, 1 x Mic-in |
| TPM | 1x Infineon TPM 2.0 Module |
| Expansions | |
| Backplane | 2 x PCIe x8 |
| PCIe Mini | 1 x Half-size PCIe Mini slot 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) |
| Power | |
| Power Input | DC Jack: 9 V~36 V DC Terminal Block: 9 V~36 V DC |
| Power Consumption | 19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory) |
| Internal Power output | 5V@3A or 12V@3A |
| Reliability | |
| Mounting | Wall mount |
| Operating Temperature | Xeon® E3 -20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing i7-7700T -20°C ~ 35°C with air flow (SSD), 10% ~ 95%, non-condensing i5-7500T -20°C ~ 45°C with air flow (SSD), 10% ~ 95%, non-condensing i7-6700TE -20°C ~ 45°C with air flow (SSD), 10% ~ 95%, non-condensing i5-6500TE -20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing |
| Operating Vibration | MIL-STD-810G 514.6 C-1 (with SSD) |
| Safety/EMC | CE/FCC/RoHS |
| OS | |
| Supported OS | Win10/Linux Ubuntu 16.04 LTS |
