- 4х-ядерный процессор Intel ® Core i7-1185G7E/i5-1145G7E/Celeron 6305
- Память DDR4 объемом 8 ГБ

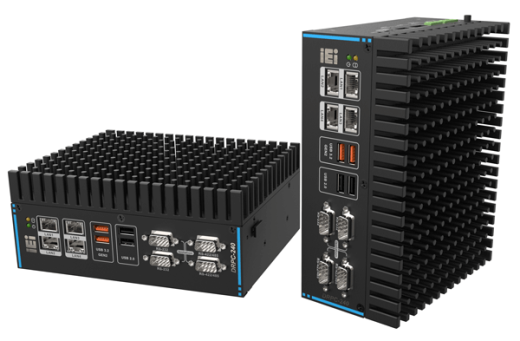

- Компактный, монтируемый на DIN-рейку безвентиляторный корпус

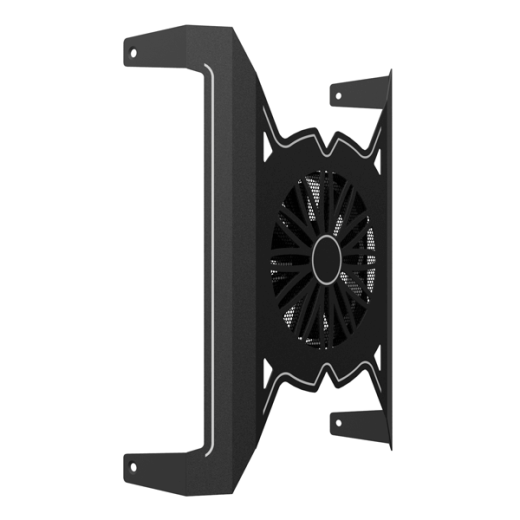

- Модульная конструкция с дополнительными 2 креплениями
- Дополнительное подключение по Wi-Fi/Bluetooth
- 4 порта x 2.5GbE с поддержкой PoE (опция)
- 2 x RS-232 и 2 x RS-422/485 (с изоляцией 2,5 кВ)
- Соответствие требованиям CE/FCC
| CPU | Intel® Tigerlake U Celeron/Core I3/I5/I7 CPU |
| System Memory | 2*DDR4 SO-DIMM slot, support 3200MHz, max 64GB |
| Expansion | 1*full size Mini PCIe，with PCIe X1+USB2.0 signal，support Wifi/BT module |
| 1*M.2 3052 B-Key, with SIM slot，PCIe X1+USB2.0，support 4G LTE, 5G NR module | |
| 1*M.2 22080 M-Key , PCIex2 Gen4.0 signal, support high speed signal function card | |
| IntelGraphics | Intel UHD Graphics or iRIS® Xᵉ Graphics , Supports Intel DL boost deep learning technology，DirectX12.1, OpenGL 4.6 and OpenCL 2.0 |
| HDMI 2.0 max res 4096x2304@60Hz，DP 1.4 max res 7680x4320@60Hz | |
| Audio | Realtek ALC662 controller(Opt) |
| LAN | 3*Intel I225V, 10M / 100M / 1000M / 2.5G self-adapt，support iAMT 13.0 |
| Storage | 1*2.5”SATA bay，max support 6.0Gbps transport speed; 1*full size mSATA，support AHCI |
| 1*M.2 22080 M-Key NVME(PCIex2 Gen4.0） | |
| I/O ports | 3*2.5G-LAN(RJ45, with anti-screw hole) ；1*HDMI+1*DP；1*Audio out 1*Mic dual 3.5mm phone jack |
| 2*USB3.2 (Type A gen 2.0，one of them with anti-screw hole) , max support 10.0Gbps transport speed | |
| 2*USB2.0(Type A，one of them with anti-screw hole)，1*USB2.0(Type A) internal，1*USB2.0 internal pinheader | |
| 2*RS232/422/485 (DB9 Male)，1*MIO (opt support internal expansion module） | |
| 1*8-bit DIO (2*5Pin phoenix term，side)，1*SIM slot（slot） | |
| I-port | Support internal 1*USB2.0, or Mini-PCIe, M.2 and ect expansion module such as dual Gig-LAN module, Can bus or COM ect |
| LED | 1*Power LED, 1*HDD LED, 3*CPU temp LED（Red is warning , Yellow is high, Green is normal） |
| Control SW | 1*Power button，1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW |
| Power supply | DC 9-36V, 1*3-pin phoenix term, with short circuit, over voltage and over current protection |
| TDP: TBD | |
| Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
| OS | Windows 10 64 bit, SUSE, Ubuntu, Wind River, Linux |
| Mechanical | SGCC chassis, Aluminum frame |
| Color | Blue+white gray |

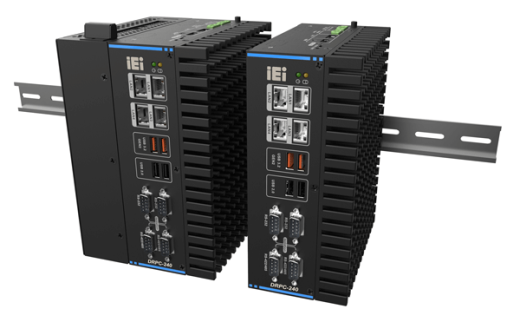

| Mounting | Desk mounting with rubber Rails, opt Din-Rail mounting |
| Dimension | (L*W*H)：250*154*61.9mm |
| Net weight | 2.55kg |
| Operating temperature | -20～65℃, wide temp SSD, airflow |
| Storage temperature | -40°C~85°C |
| Storage humidity | 10~90%, 40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/ random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) |
| Shock | 50g peak acceleration (11ms duration)(SSD); 20g peak acceleration (11ms duration)(HDD） |
| EMC/Certification | CE/FCC Class B |
