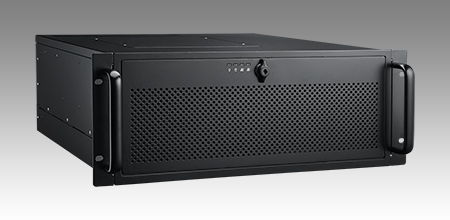

Серверный корпус HPC-7400
Цена по запросу
Арт. HPC-7400
4U Compact Rackmount / Tower Chassis for EATX/ATX Motherboard
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
Серверный корпус HPC-7400
Цена по запросу
Арт. HPC-7400
#PROP_TITLE#
—
#PROP_VALUE#
- 4U compact industrial server chassis suitable for space-sensitive applications
- Supports EATX/ATX/MircoATX motherboard
- Shock-resistant 2 x 5.25" (front) + 2 x 3.5" int (rear) and optional 2 x 3.5" int. HDD bays
- Supports 80plus 1U single and 1+1 redundant higher watt power supply

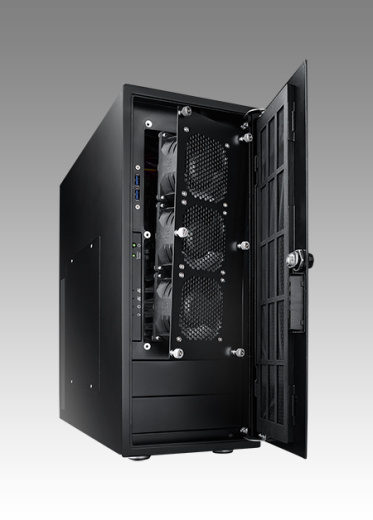

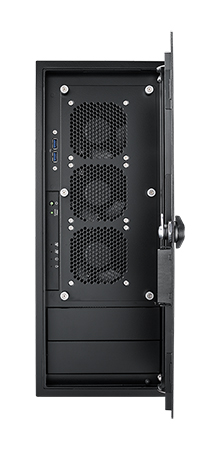

- Front-accessible system fan without opening top cover

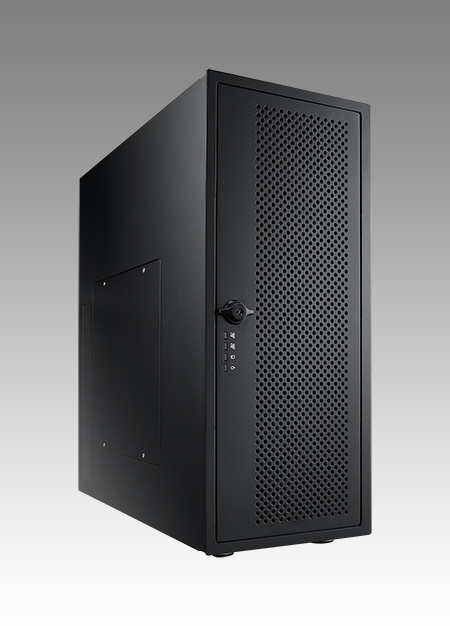

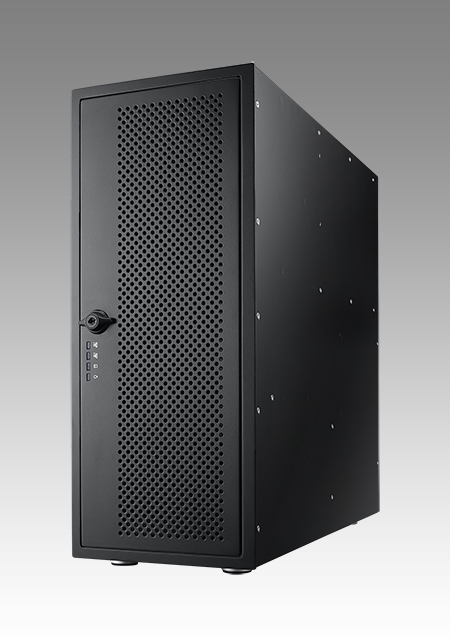

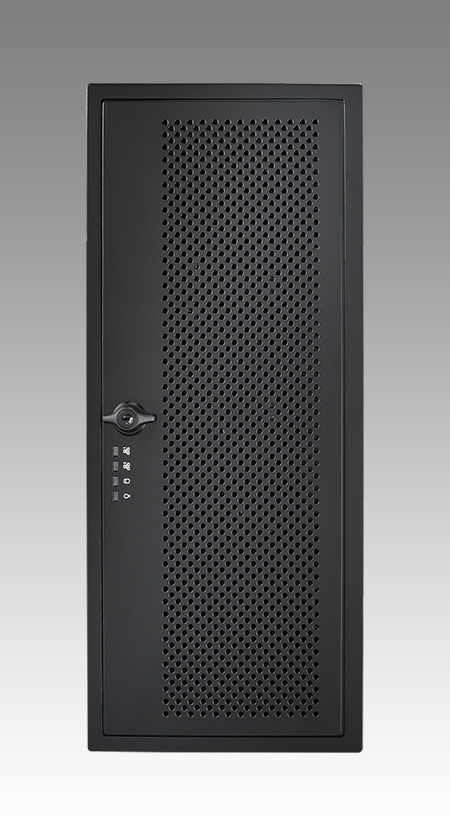

- Lockable front door with replaceable air filter prevents unauthorized access
| HPC-7320MB-00XE | ||
|---|---|---|
| Cooling | Air Filter | Yes |
| Fan | 2 (8cm/141.9CFM) + 1 (6cm/27.72CFM) | |
| Drive Bay | 3.5 External Bay | - |
| 3.5 Internal Bay | 2 | |
| Hot Swap External | 2 (3.5" or 2.5") | |
| Slim Optical Drive External | 1 | |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 60° C, non-condensing |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | |
| Non-Operational Temperature | -40 ~ 70° C (-40 ~ 156° F) | |
| Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) | |
| Shock | 10 G (with 11 ms duration, half sine wave) | |
| Vibration (5 ~ 500 Hz) | 1 Grms | |
| Front I/O Interface | USB3.0 | 2 |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, and LAN2 |

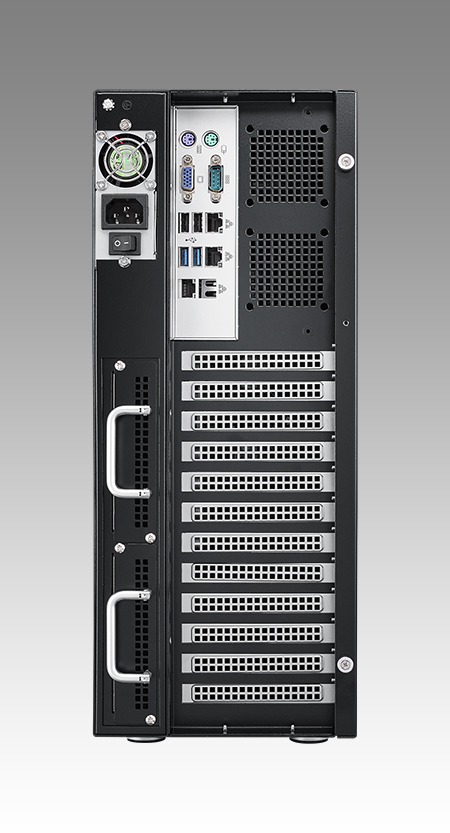

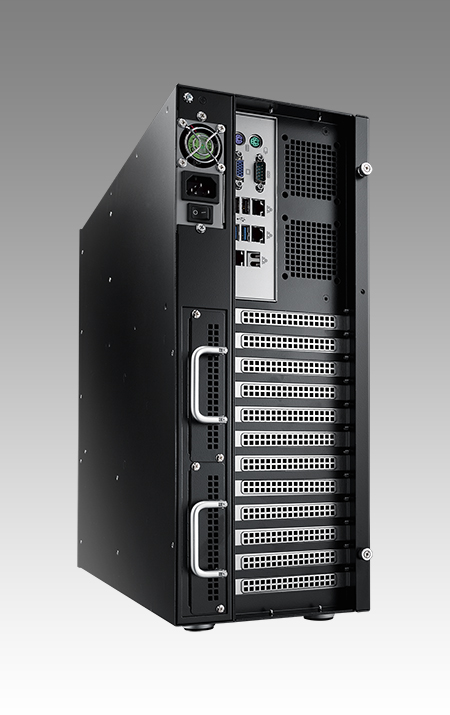

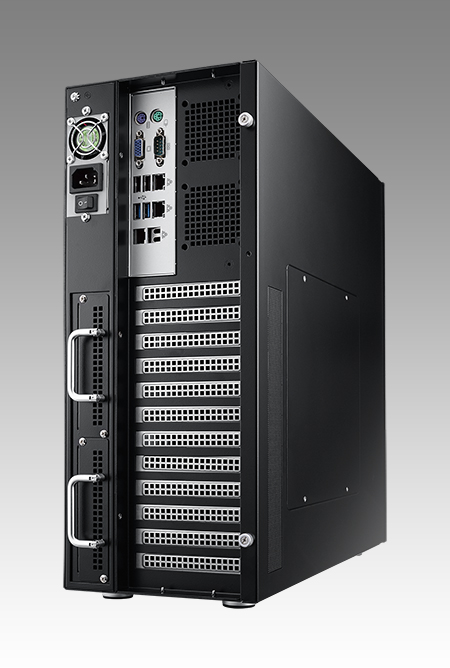

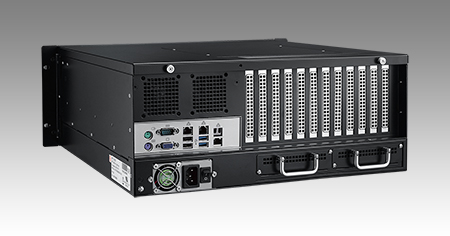

| Rear Panel | Two 9-pin D-Sub openings | |
| Physical Characteristics | Dimensions (W x H x D) | 426.4 x 132.2 x 480 mm (16.79" x 5.2" x 18.9") |
| Weight | 12 kg | |
