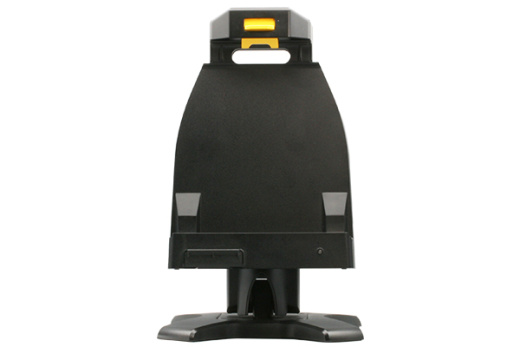

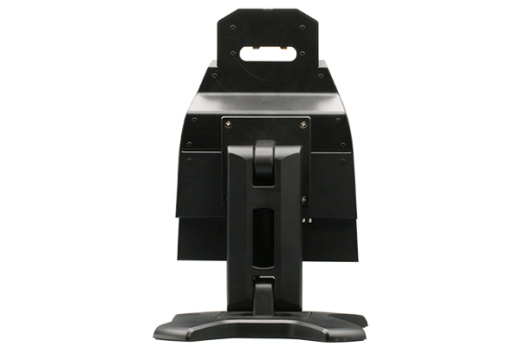

RDS-411
Цена по запросу
Арт. RDS-411
Rugged Docking Station for RTC-1010
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
RDS-411
Цена по запросу
Арт. RDS-411
#PROP_TITLE#
—
#PROP_VALUE#
- Apply on RTC-1010
- Front-facing I/Os: USB 2.0 x 2 with Protection Cover

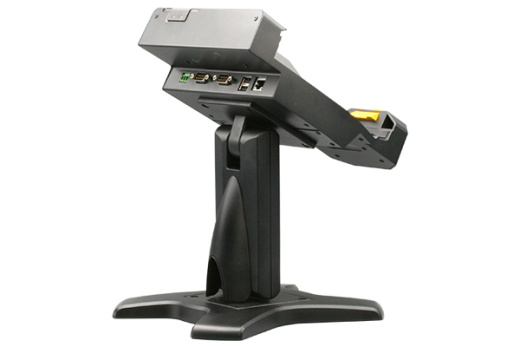

- Downward-facing I/Os for Easy Cable Management: USB 2.0 x 2, RS-232 x 1 (Two: Optional), RJ45 GbE x 1, DC-in Phoenix Connector x 1
- Wide Voltage Input: 9VDC ~ 36VDC
- Power Adaptor: AC Power Adaptor (Default)
- Anti-theft Lock with Key & VESA Mount
| SYSTEM | |
| PROCESSOR | Intel® Core™ i 7100U / 7300U Dual Core up to 3.9GHz Intel® Celeron® 3965U Dual Core 2.2GHz Processor |
| OPERATING SYSTEM | Windows® 10 IoT Enerprise 64bit (Default) Windows® 7 for Skylake (Optional) |
| MEMORY | DDR3L SODIMM Socket x 1, up to 8GB |
| STORAGE | M.2 (NGFF) SSD, 64GB (Default) |
| DISPLAY | 11.6" FHD (1920x1080) 300-nit / 1000-nit TFT-LCD With Projected Capacitive Multi-Touch Screen |
| I/O PORT | HDMI port x 1, SIM card slot x 1, Micro-SD card slot x 1, Audio jack x 1 (3.5mm), USB 3.2 Gen 1 x 1 (Type A), USB 2.0 x 2 (Type A), DC-in Jack x 1, RS-232/422/485 COM Port x 1, 10/100/1000 Base-T RJ45 x 1 |
| COMMUNICATION | Wi-Fi 802.11 b/g/n, Bluetooth v4.1 |
| NAVIGATION | GPS, GLONASS |
| WWAN (OPTIONAL) | LTE via mini-card slot (Optional) |
| CAMERA | 2 MP front camera, 5 MP auto-focus rear camera with flash |
| SENSOR | G-sensor, E-compass, Gyro-sensor, Light-sensor |
| EXPANSION SLOT | Docking connector x 1, GNSS antenna Pass-through connector x 1, WWAN antenna Pass-through connector x 1 |
| BARCODE SCANNER (OPTIONAL) | 2D Barcode scanner, OPTICON MDI-4100-USB (Optional) |
| RFID (OPTIONAL) | ISO 15693 (R/W) ISO 18092 (R/W) ISO 14443-A (R/W) ISO 14443-B (Only Read UID) Depend on card type |
| PHYSICAL KEY | F0 or Windows (Windows Start Key), F1(Ctrl+Alt+Del & Barcode Scanner Trigger), F2 (Touch Mode Switch), F3 (PrtSc/printscreen), Volume Up, Volume Down |
| MECHANICAL | |
| COLOR | Gray & Black |
| DIMENSIONS (W X H X D) | 12.36" x 7.87" x 0.96" (310.4mm x 200mm x 24.5mm) |
| GROSS WEIGHT | 3.3 lbs (1.5 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| STORAGE TEMPERATURE | -67°F ~ 158°F (-55°C ~ 70°C) |
| HUMIDITY | 50°C; 5% ~ 90% R/H; 120 hours, non-condensing |
| ENVIRONMENTAL SEALING | IP65 |
| VIBRATION | MIL-STD-810G Method 514.6 Procedure I, Cat. 24, Fig. 514.6E-1 & E-2 |
| DROP | MIL-STD-810G Method 516.6 Procedure IV - Height of Drop: 122cm (48 inch; 4ft), - Number of Drop: 26 times, - Floor: Two inch plywood backed by concrete, - For all surfaces, edges and corners |
| ESD | Air charge: +/- 8KV, Contact charge: +/- 4KV |
| CERTIFICATIONS AND STANDARDS | UL: UL60950-1, CE/LVD: EN60950-1, FCC, CE |
| POWER SUPPLY | |
| AC/DC ADAPTER | AC 100~240V, 50~60Hz ; DC 19V/3.42A (65W) |
| BATTERY LIFE | Dual Li-ion High Capacity Batteries, up to 10 Hours Battery Life |
| MASTER BATTERY | Hot-swappable battery: 14.4V, 2270mAh, 32.7W |
| SLAVE BATTERY | Hot-swappable battery: 14.4V, 2270mAh, 32.7W |
| DISPLAY | |
| LCD | 11.6" TFT-LCD/ 16:9, with LED backlight |
| RESOLUTION | 1920 x 1080 pixel |
| MAX. COLORS | 16.7M |
| DOT SIZE | 0.117 x 0.117(H) |
| BRIGHTNESS | 1000 nits; 300 nits (Optional) |
| VIEWING ANGLE | Horizontal: 178° (Typ.), Vertical: 178° (Typ.) |
| TOUCH SCREEN | |
| TOUCHSCREEN TYPE | 11.6" Projected Capacitive Multi-Touch Screen Gloves / Finger Switchable by F2 |
| LIGHT TRANSMISSION | Min 87% (ASTM D1003; Wavelength = 550 nm) |
