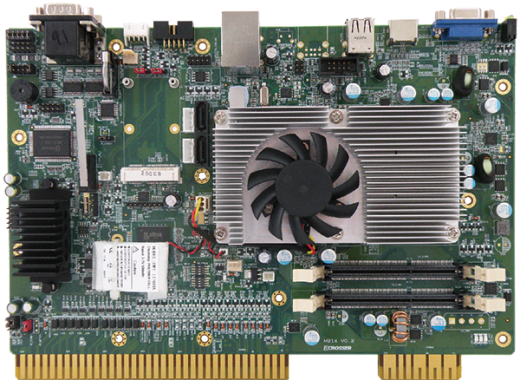

AMB-A55EG1

При размещении заказа, пожалуйста, проверьте доступность оборудования на складе.

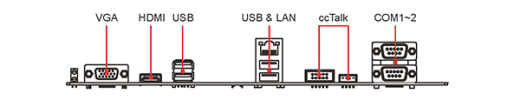

AMD Embedded G-Series T56N. 2 x COM. 6 x USB. 1 x LAN. 2 x cctalk. 17 protected input & 16 output. battery backup SRAM. 2 x Intrusion Detection

Подробности

Характеристики

Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.

При размещении заказа, пожалуйста, проверьте доступность оборудования на складе.

General PC Feature

CPU	Mobile Intel Ivy Bridge Core i5 3230M (2.60GHz, 3M Cache, Dual cores)
Chipset	Intel HM76
Memory	Memory DDR3 (1.5V) 1066 MT/s, 1333 MT/s and 1600 MT/s Dual Channel 204-pin 1.5V DDR3
Battery	● One 220 mAh CR2032 for system RTC ● One extra rechargeable battery for door switch
Real Time Clock	● 1 x System RTC and ● 1 x secured RTC
Fan Connector	2 x 12V fan connector

Video

Graphic Controller	Integrated Intel Graphics HD4000 supports OpenGL 4.0, DirectX 11
Video Memory	Shared memory
Video Interface	2 x VGA (1 x DB15, 1 x pin header optional DVI-I)

Storage

SATA	2 x SATA 3.0 (SATA DOM)

Communication

Ethernet	1 x GbE RJ45, Realtek RTL8111DL
USB	6 x USB (2 x USB 2.0, 4 x USB 3.0)
Serial Port	● 4 x RS-232(4 x DB9) ● 2 x RS-232/422/485/SAS(8-bit IC) ● communication. (2 x male DB9 connector)

Audio

Output

2.1 channel output without amplifer
Audio jack 3.5Φ (2 layers for stereo and sub-woofer

Other Feature

Hardware Monitoring	● CPU temperature ● System temperature ● CPU voltage
WatchDog Timer	Software programmable 1~255 sec.
Indicator	HDD and Power LED

Gaming I/O

I/O Interface	Micro-Fit connector
Digital Input	32 bits GPI by Micro-Fit connector (Digital logic, high above 3v, low is 0V)
Digital Output	32 bits GPO by Micro-Fit connector (max.500ma drain current)
GPIO	32 bits
Door Switch	● 4 x Door Switches (2 x internal & 2 x external) ● One switch is designed for HDD open (SATA DOM) ● One switch is designed for system open ● 2 x external switches connected to Micro-Fit ● Door switch connect to GPI ports for intrusion log use.
Hardware Monioring	● CPU temperature ● System temperature ● CPU voltage

Power Requirement

Power Input

+12V input from power connector (AT mode)

Software

OS Support	● Support Windows 7 32-bit ● Windows 7 Embedded 32-bit
Software Development Kit	● Windows 7 32-bit and Windows 7 Embedded 32-bit for ● Chipset driver, LAN, Audio & Graphic ● Digital I/O ● Door switch ● System WatchDog

Mechanical & Environment

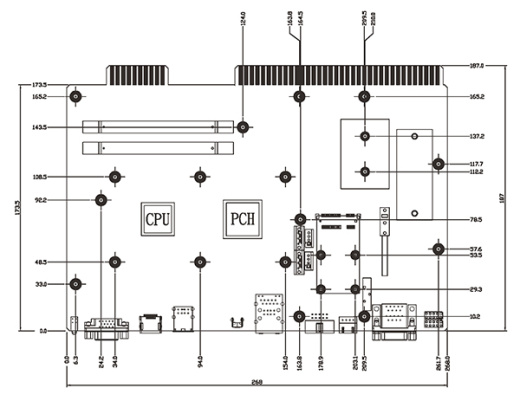

Dimension	193 mm x 313 mm x 49mm (D x W x H)
Operating Temp.	0~50°C (32~131°F)
Storage Temp.	-20~85°C (-4~176°F)
Relative Humidity	90% non-condensing
Safety	CE, FCC class A

Packing List

● 1 x ACE-SHM76G1

● 1 x Driver CD

● 1 x Quick user manual

● 1 x Carton

● 4 x 22(2x11) pin Micro-Fit cable for digital input

● 1 x 8(2x4) pin Micro-Fit cable for power
