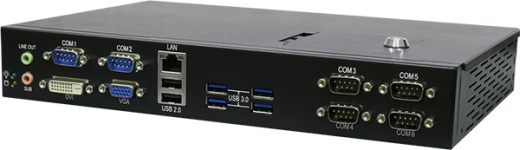

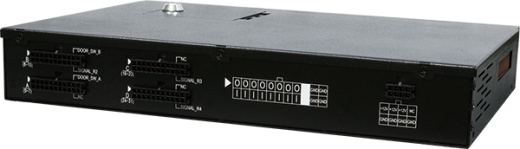

ACE-SHM76G1

При размещении заказа, пожалуйста, проверьте доступность оборудования на складе.

Intel Iny Bridge All-in-One gaming system

Подробности

Характеристики

Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.

При размещении заказа, пожалуйста, проверьте доступность оборудования на складе.

Chipset Intel HM76 chipset (Ivy Bridge Core i5 3230M)

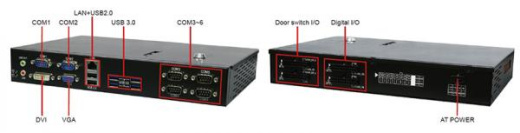

Display - VGA + DVI-D dual display
SATA DOM door and key switch for easy maintenance and security
Digital Input x 32 pin header
Digital Output x 32 pin header
6 x COM(4 x rs232,2 x RS232/422/485/SAS(8 bit IC) communication.
Door Switch for intrusion log use.

System

CPU	● Intel Core i7 5650U 2.20GHz, 4M cache ● Intel Core i5 5350U 1.80GHz, 3M cache ● Intel Core i3 5010U 2.10GHz, 3M cache
Chipset	-
Memory	2 x DDR3L-1600MHz, SO-DIMM, up to 16GB(non-ECC)

Video

Graphic Controller	Intel® HD Graphics 6000
Video Memory	DVMT
Video Interface	● 1 x HDMI type A connector ● 1 x DVI-D connector

Storage

SATA	● 1 x SATA III port with power connector
SSD	● 1 x M.2 SSD
Disk Bay	● 1 x swappable 2.5" SSD bay with Anti-vibration / Anti-shock solution

Communication

Ethernet	● 2 x Intel GbE chip via RJ-45 connector (Intel i210IT)
USB	● 2 x USB 3.0 ● 2 x USB 2.0
Serial Port	● 2 x RS232 (2 x DB9) ● 1 x RS422/RS485 (Select by GPIO)

I/O

Expansion slot	● Mini PCIe Socket supported for WiFi+BT.
GPIO	● 8-bit GPIO (4 In, 4 Out)
Antenna Hole	● 1 x SMA for GPS ● 1 x SMA for 4G LTE ● 2 x SMA for WiFi ● 1 x SMA for Bluetooth
SIM	SIM Slot x 1, SIM card changeable without opening case
Security	Support I-Button for driver ID
CAN BUS	Support CAN 2.0A/2.0B protocol

Others Feature

Audio	Audio Codec (Line-out & MIC)
Hardware Monitoring	CPU voltage and temperature
WatchDog Time	0~255 sec. software programmable
Indicator	Power / HDD/ Stauts LED

Power Requirement

Power Input

9~32 V (+/-5%) single voltage input, 3 poles terminal block

Software

OS Support

● Windows 7
● Windows 8.1
● Fedora 21
● Ubuntu 15.04

Mechanical & Environment

Thermal Design	Fanless
Chassis Material	Metal SPGC (Black printing color)+ Aluminum heatsink
Vibration	IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD
Shock	IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD
Dimension	290mm x 190mm x 45mm
Weight	4 kg
Operating Temp.	0~60°C
Storage Temp.	-40~80°C
Relative Humidity	0~90% @ 40°C, non-condensing
Safety	CE, FCC class B, E-Mark

Smart In-Vehicle Power Management

O/S Anti-Crash	Smart O/S boot/shut-down control by power subsystem
System boot / Shut-down delay	Delay time from 0 seconds to 60 minutes setting in BIOS
Power on/off switches	● System power switch by remote cable switch ● System power input serial connection to car battery and ignition switch
Car battery protection	Low battery voltage monitoring and configurable auto shutdown low battery voltage level

Packing List

● 1 x AIV-QM97V1FL

● 1 x User Guide & System Driver CD

● 1 x Screw pack(2.5”HDD bracket: 4pcs)

● 1 x Terminal block female 3pin(for power input)

● 1 x Spare Fuse 10A

● 1 x GPIO/CAN/Driver ID DB15 Cable

● 1 x Remote Switch Cable

● 1 x HDMI locking bracket

Option

Sierra 7355 4G LTE & GPS module

Sparklan 251N(BT) 802.11 Wifi+BT module

Transcend TS128GMTS800 / M.2 TYPE 2280-D2-B-M / SATA SSD / 128GB
