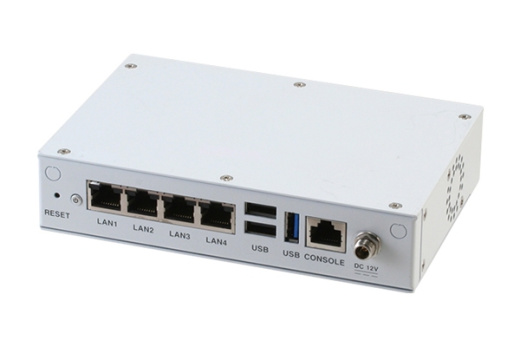

FWS-2250
Цена по запросу
Арт. FWS-2250
Desktop 4 LAN Ports Network Appliance with Intel® Atom™ E3815/E3827/Celeron® J1900 Processor SoC
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
FWS-2250
Цена по запросу
Арт. FWS-2250
#PROP_TITLE#
—
#PROP_VALUE#
- 4 LAN Ports Network Appliance
- Onboard Intel® Atom™ E3815/E3827/Celeron® J1900 Processor SoC
- 204-pin DDR3L 1066/1333 MHz SODIMM up to 2 Slots, up to 8 GB
- 10/100/1000Base-TX Ethernet x 4 (up to 1 Pair Bypass)
- CompactFlash™ Socket x 1
- RJ-45 Console x 1, USB 2.0 x 2, USB 3.0 x 1
- DC 12V Power Input Requirement
- Mini-Card Socket x 1
| SYSTEM | |
| FORM FACTOR | Desktop 4-Port Network Appliance |
| PROCESSOR | Intel® Atom™ E3815 1.46 GHz (Single Core) Intel® Atom™ E3827 1.75 GHz (Dual Core) Intel® Celeron® J1900 2.0 GHz (Quad Core) |
| CHIPSET | — |
| SYSTEM MEMORY | 204-pin dual-channel DDR3L 1333/1600MHz SODIMM x 2, up to 8GB (E3815 Single Channel) |
| NETWORK | |
| ETHERNET | Intel® i211, Gigabit Ethernet x 4 |
| BYPASS | Supports 1 pair bypass function |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD Graphics |
| CONNECTOR | Reserved internal VGA pin header x 1 |
| STORAGE | |
| HDD | Optional SATA2 connector x 1 |
| CF/CFAST/MSATA | CF socket x 1 |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-Card slot x 1 (Half size) |
| KB MOUSE | Pin-header |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| TPM | — |
| GPIO | — |
| FAN | Fan/Fanless refers to order information |
| MTBF (HOURS) | 90630 |
| COLOR | White |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC power in connector/ 40W Power adapter x 1 4-pin DC power out connector for HDD x 1 |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation 1.5 Grms/ 5 ~ 500Hz/ non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 6.3” x 4.09” x 1.38” (160mm x 104mm x 35mm) |
| I/O | |
| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 Bypass LED x 1 (Optional) LAN LED x 8 |
| REAR PANEL | 12V DC Power Input x 1 Power Button x 1 USB 3.0 x 1 USB 2.0 x 2 RJ-45 LAN x 4 RJ-45 Console x 1 Software Programmable Button x 1 |
