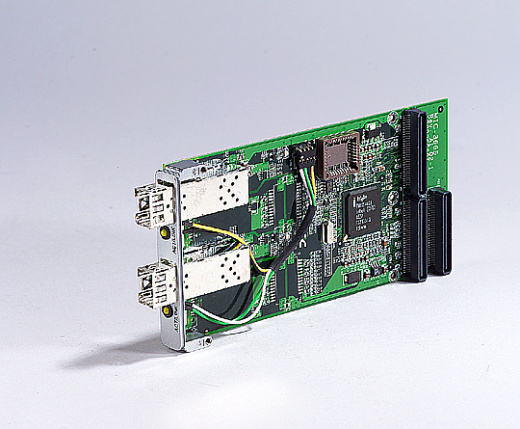

MIC-3665
Цена по запросу
Арт. MIC-3665
Dual Gigabit Ethernet PCI-X PMC
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
MIC-3665
Цена по запросу
Арт. MIC-3665
#PROP_TITLE#
—
#PROP_VALUE#
- Intel® 82546GB Dual Port Gigabit Ethernet Controller
- Complies with IEEE 802.3 specifications for 1000Base-T, 100Base-TX, and 10Base-T
- Compliant with standard single-wide PMC IEEE P1386.1, PCI 2.3 and PCI-X 1.0a specifications
- Single-wide 32-bit/33 MHz 64-bit/66 MHz PCI, 100/133 MHz PCI-X PM
- Supports dual Gigabit Ethernet copper (RJ-45) interfaces or dual fiber Gigabit Ethernet interfaces
;
| Specifications | |||||
| Bus | PCI 2.3 32-bit/33 MHz, 64-bit/66 MHz | ||||
| PCI X 1.0a 100/133 MHz | |||||
| Ethernet | Interface IEEE 802.3 Ethernet interfaces for 1000Base-T, 100Base-TX, and 10Base-T applications (802.3, 802.3u, 802.3ab). | ||||
| Controller Intel 82546GB | |||||
| Connector Dual fiber Gigabit Ethernet interfaces or Dual copper(RJ-45) Gigabit Ethernet interfaces | |||||
| Power | Power Consumption 6 W | ||||
| Environment | Operating | Non-Operating | |||
| Temperature 0 ~ 55° C (32 ~ 131° F) -40 ~ 60° C (-40 ~ 140° F) 95 % @ 60° C (non-condensing) | |||||
| Humidity - | 95 % @ 60° C (non-condensing) | ||||
| Vibration (5 ~ 500 Hz) 1.0 Grms 2.0 G | |||||
| Operating System | Windows® XP Professional Compatibility Windows 2000 Professional Windows NT 4.0 Linux kernel 2.4.x | ||||
| Physical Characteristics | Dimensions 74 x 149 mm (2.9" x 5.78") | ||||
| Weight 0.3 kg (0.66 lb) | |||||
| Reliability | MTTR 5 minutes | ||||
| Compliance | PICMG 2.0 R3.1 CompactPCI Specifications IEEE P1386.1 PMC Specification | ||||
