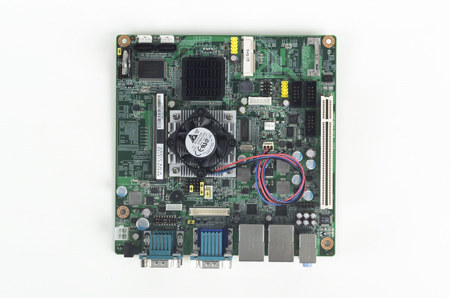

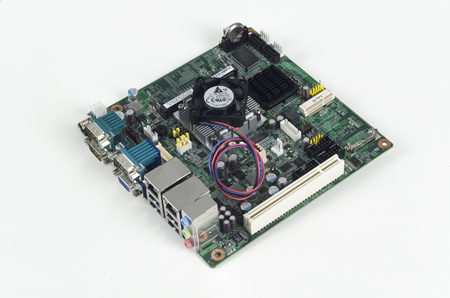

Материнская плата AIMB-212
Арт. AIMB-212
Intel® Atom™ N450/D510 Mini-ITX with CRT/LVDS, 6 COM, and Dual LAN ports
Подробности
Характеристики
Все данные, представленные на веб-сайте, предназначены только для ознакомления и не могут быть рассмотрены как публичное предложение в соответствии с положениями Статьи 437.
Материнская плата AIMB-212
Арт. AIMB-212
#PROP_TITLE#
—
#PROP_VALUE#
- Supports Intel® Atom™ processor N450 and D510 dual core
- One 200-pin SODIMM up to 2 GB DDR2 667 MHz SDRAM
- Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and CF
- Lower total cost of ownership with DC12V support
- Supports SUSIAccess and Embedded Software APIs
| AIMB-212D-S6A1E | AIMB-212N-S6A1E | ||
|---|---|---|---|
| Expansion | Slots | PCI, Mini-PCIe | PCI, Mini-PCIe |
| Form Factor | Form Factor | mini ITX | mini ITX |
| Processor | CPU | Intel Atom D510 | Intel Atom N450 |
| CPU TDP | 13 W | 5.5 W | |
| Frequency | 1.66 GHz | 1.6 GHz | |
| Core Number | 2 | 1 | |
| L2 Cache | 1 MB | 512 KB | |
| BIOS | AMI PSI 16 Mbit | AMI PSI 16 Mbit | |
| Chipset | Intel ICH8M | Intel ICH8M | |
| Memory | Technology | DDR2 667MHz | DDR2 667MHz |
| Max. Capacity | 2 GB | 2 GB | |
| Socket | 1 x 200-pin SODIMM | 1 x 200-pin SODIMM | |
| Display | Controller | Intel Atom D510 intergrated | Intel Atom N450 intergrated |
| Video Interface | LVDS, VGA, Dual Display CRT+LVDS | LVDS, VGA, Dual Display CRT+LVDS | |
| Graphic Memory | Share with system memory up to 224 MB | Share with system memory up to 224 MB | |
| VGA | up to SXGA 2048 x 1536 @ 60Hz | up to SXGA 1400 x 1050 @ 60Hz | |
| LCD (TTL/LVDS/eDP) | LVDS:single channel 18-bit up to WXGA 1366 x 768 | LVDS:single channel 18-bit up to WXGA 1366 x 768 | |
| Multiple Display | Dual | Dual | |
| Expansion | Slot Type | 1 | 1 |
| PCI | 1 | 1 | |
| Ethernet | Controller | GbE1: Intel 82567V; GbE2: Intel 82583V | GbE1: Intel 82567V; GbE2: Intel 82583V |
| Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 2 | RJ45 x 2 | |
| Audio | Audio Interface | HD Audio | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | |
| Connector | 3 (Mic-in, Line-out, Line-in) | 3 (Mic-in, Line-out, Line-in) | |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| Storage | SATA | 2 x SATA II (Max. Data Transfer Rate 300 MB/s) | 2 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| CompactFlash | CompactFlash Type I/II | CompactFlash Type I/II | |
| I/O | USB2.0 | 8 | 8 |
| GPIO | 1 | 1 | |
| COM Port | 6(5 x RS-232, 1 x RS-232/422/485) | 6(5 x RS-232, 1 x RS-232/422/485) | |
| Power | Power Type | ATX, AT | ATX, AT |
| Connector | DC jack, internal 4pin | DC jack, internal 4pin | |
| Power Adaptor | Yes | Yes | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40~ 85° C | -40~ 85° C | |
| Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) | |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package | |

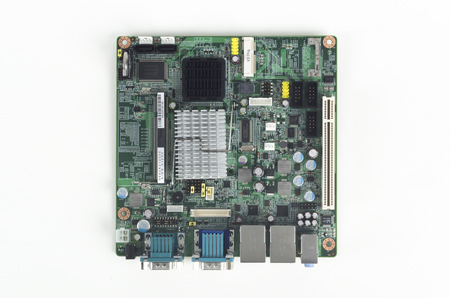

| Construction | with CPU cooler desing | with fanless design | |
| Operating System | Microsoft Windows | Yes | Yes |
| Linux | Yes | Yes | |
| SUSIAccess | Yes | Yes | |
| Certification | EMC | CE, FCC | CE, FCC |
